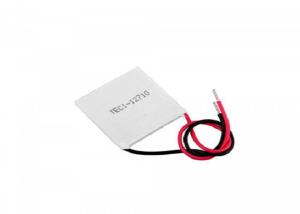

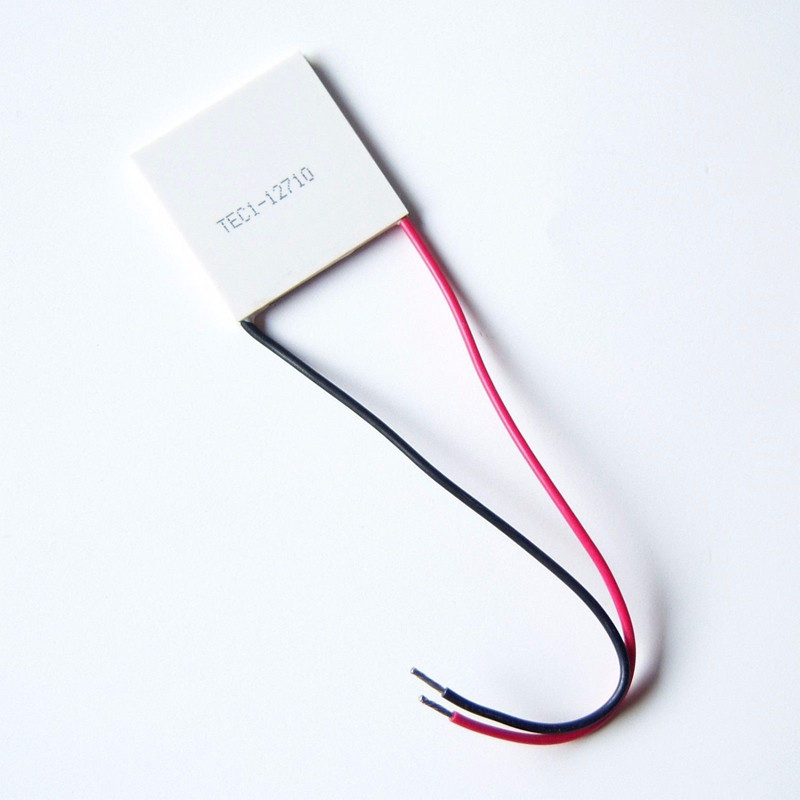

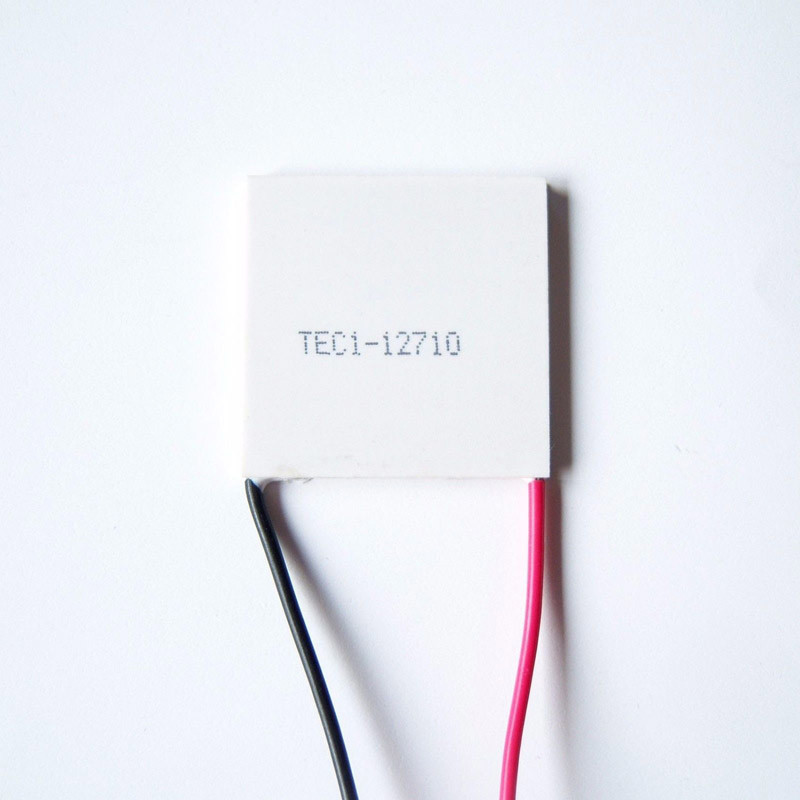

TEC1-12710 127 couples 40 mm × 40 mm size Thermoelectric Cooler Peltier Module
Description:
The 127 couples, 40 mm × 40 mm size single module which is made of our high performance ingot to achieve superior cooling performance and 70 ºC or larger delta T max, is designed for superior cooling and heating applications. Beyond the standard below, we can design and manufacture the custom made module according to your special requirements
Features:
Wire Size: Lead Length 300 ± 5mm RV Standard Wire Single Head 5mm Tinned
Internal resistance: 1.2 ~ 1.5Ω (ambient temperature 23 ± 1 ℃, 1kHZ Ac test)
Maximum temperature difference: △ Tmax (Qc = 0) above 60 ℃.
Operating current: Imax = 10A (15Vmax voltage start)
Rated voltage: DC12V (Vmax: 15.5V)
Cooling power: Qcmax 92W
Assembly pressure: 85N / cm2
Working environment: temperature range -55 ℃ ~ 83 ℃ (too high ambient temperature will directly affect the cooling efficiency)
Packaging technology: around the standard 704 silicone rubber seal
Packaging standards: foam box packaging, storage conditions Ambient temperature -10 ℃ ~ 40 ℃
Storage conditions: -40 ~ 60 ℃
Application:
Food and beverage service refrigerator
Portable cooler box for cars
Liquid cooling
Temperature stabilizer
CPU cooler and scientific instrument
Photonic and medical systems
